Security Modernization of a Business-Critical Enterprise Application

Many large enterprises rely on legacy web applications that were designed before modern cloud security principles became standard. As cyber threats evolve, these platforms often expose organizations to significant risk due to flat network topologies, permissive access controls, and unsecured deployment practices.

This case study details the comprehensive security modernization of a monolithic, business-critical enterprise application. By redesigning the network architecture, enforcing strict identity controls, securing the CI/CD pipeline, and implementing robust data protection mechanisms, the organization successfully transformed a vulnerable legacy system into a hardened, Zero Trust environment.

The enterprise relies on a critical web platform hosted on standard cloud infrastructure. Over time, operational convenience have taken priority over security, leading to severe vulnerabilities:

• Perimeter Weakness: The application could be directly exposed to the internet with minimal filtering, making it highly susceptible to volumetric attacks and application-layer exploits.
• Flat Network Architecture: Compute nodes and databases resided in the same network segments. A compromise of a public-facing web server could allow an attacker to traverse directly to the database.
• Insecure Deployments: Deployment pipelines relied on hardcoded credentials and lacked automated security scanning, risking the introduction of vulnerabilities into production.
• Over-privileged Access: Applications connected to databases using highly privileged, shared service accounts, increasing the potential impact of a SQL injection attack.

The goal was to overhaul the application’s security posture without disrupting ongoing business operations. Key objectives included:

• Overhaul Software and Tools:Review the list of software and libraries in use on servers, server images (AMIs, Dockerfiles etc.), scan for vulnerabilities, classify the vulnerabilities based on the impact that they may have if exploited. Apply patches, library upgrades and code fixes to address them. Remove tools and libraries not used to minimize the attack surface area.
• Perimeter Hardening: Implement enterprise-grade edge security to filter malicious traffic before it reaches the cloud provider.
• Network Micro-segmentation:Isolate the application into distinct tiers to prevent lateral movement.
• DevSecOps Integration: Build a secure, automated CI/CD pipeline with continuous vulnerability scanning and dynamic secrets management.
• Data Protection & Secure Migration: Encrypt all sensitive data at rest and in transit, and establish secure data transfer protocols.
• Identity-First Security:Enforce the principle of least privilege across all human and machine identities.

The modernization effort was driven by a Defense-in-Depth strategy:

• Static Analysis (SAST): Integrate Static Application Security Testing into the developer workflow to identify code vulnerabilities proactively before builds occur.
• Software Composition Analysis (SCA): Automate the scanning of third-party dependencies in CI/CD pipelines to detect and mitigate known Common Vulnerabilities and Exposures (CVEs).
• Secret Detection:Actively scan source code and commits to prevent hardcoded API keys, tokens, and credentials from entering repositories.
• Infrastructure as Code (IaC) Scanning: Evaluate Terraform, CloudFormation, and Kubernetes manifests against custom security policies to prevent cloud misconfigurations prior to deployment.

• Operating System Baselines: Measure current server states against established CIS, STIG, or vendor baselines. Remove optional packages, disable unused services, and close unnecessary listening ports to reduce the attack surface.
• Access and Authentication: Enforce strict SSH key and cipher policies, restrict sudo and PAM scope, and mandate Network Level Authentication (NLA) for Windows RDP. Implement Multi-Factor Authentication (MFA) on administrative paths and define break-glass emergency procedures.
• Kernel and Runtime Defenses: Apply secure sysctl rules, enforce AppArmor or SELinux profiles, and configure AppLocker or WDAC for Windows servers. Restrict kernel modules and set /tmp and /var mount points to noexec to prevent unauthorized script execution.

• Pipeline Integration: Shift security from a final pre-release gate to a continuous, automated process embedded entirely within the CI/CD lifecycle. Treat application security as a shared responsibility across development and operations teams.
• Container Hardening: Scan container images with specialized tools before deployment. Enforce Pod Security Standards and configure admission controllers within Kubernetes environments to establish secure container build practices.
• Automated Enforcement: Tune security scanning tools to reduce developer friction from false positives, and ensure automated deployments satisfy strict compliance requirements like PCI DSS and SOC 2.

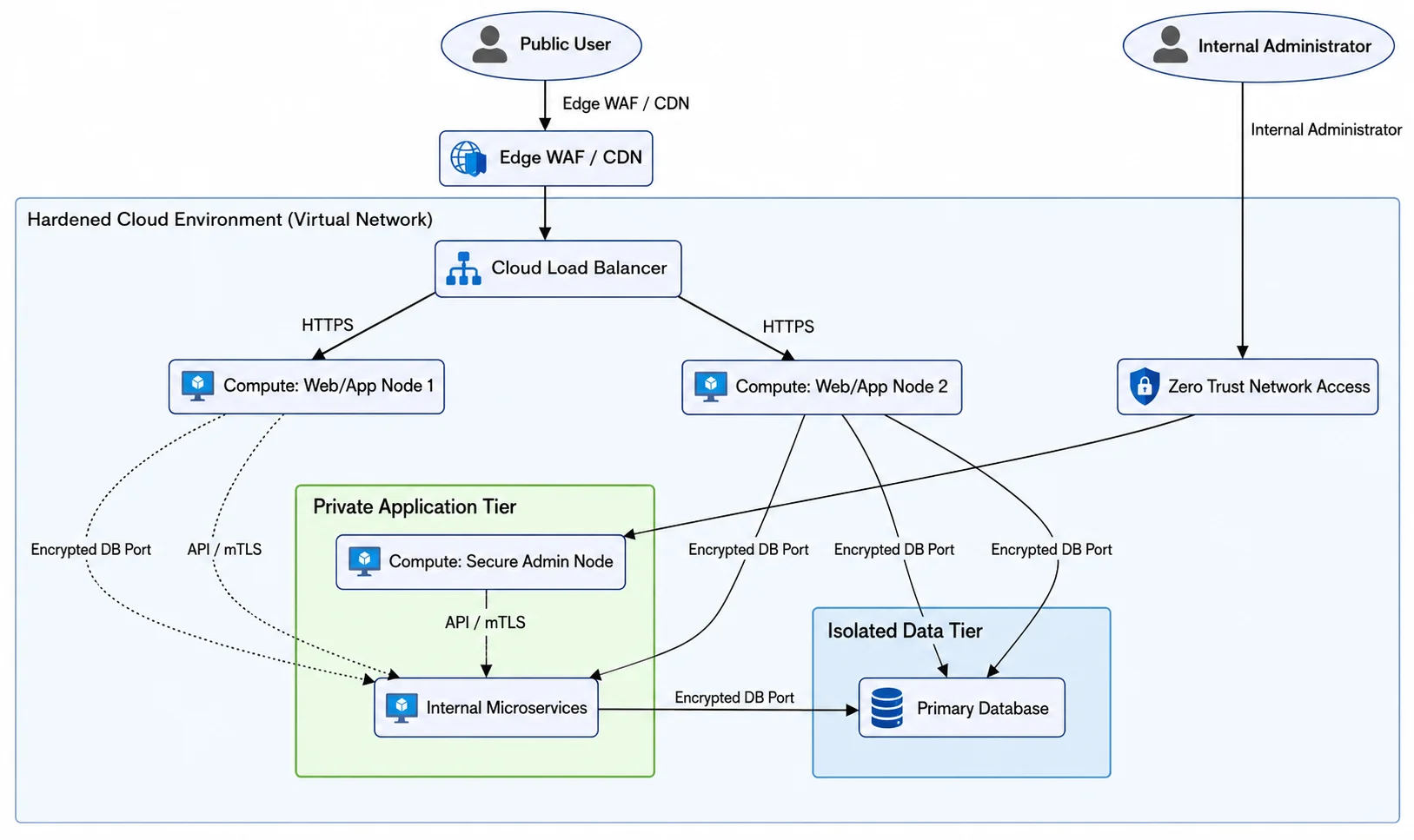

The infrastructure can be designed into a strict three-tier virtual network model.

• Public Tier: Only the Load Balancer exists in a public-facing subnet. It drops any traffic not originating from the Edge WAF.
• Application Tier: Web and application servers operate in private subnets with no outbound internet access (egress filtering). Administrative interfaces are strictly segregated onto dedicated nodes accessible only via Zero Trust Network Access (ZTNA).
• Data Tier: Databases are isolated in the deepest network layer, protected by strict network security groups that only permit database protocols from specific application-tier interfaces.

Securing the data layer required both architectural changes and careful operational execution.

• Encryption Standards: All databases and attached storage volumes were encrypted at rest using centrally managed cryptographic keys. Transport Layer Security (TLS 1.2+) was enforced for all internal service-to-service communication.
• Access Control Overhaul: Over-privileged accounts were replaced with dedicated, least-privilege service accounts bound to specific application roles.
• Secure Data Migration: During the infrastructure upgrade, large-scale data and asset migrations were required. Rather than using automated zip compression scripts—which can create vulnerable temporary files and strip permissions—the team executed the migration using secure, manual folder mirroring over internal network protocols. This approach bypassed intermediary storage vulnerabilities and guaranteed that granular, file-level access controls remained strictly intact on the new architecture.

Post-deployment, the organization established continuous security operations:

• Automated Patching: Implementing a rolling update strategy for OS and application dependencies to ensure zero downtime during monthly security patching.
• WAF & Threat Intel: Continuously tuning WAF rules based on active threat intelligence feeds to block emerging zero-day exploits.
• Centralized Logging (SIEM): Aggregating network flow logs, application events, and infrastructure audit trails into a centralized system to detect anomalous behavior in real-time.
