Enterprise Cloud Migration & Modernization

A large enterprise organization operating across multiple business units and geographies undertook a strategic initiative to migrate its entire on-premises IT estate to Microsoft Azure. The legacy infrastructure — a mix of physical servers, tightly-coupled monolithic applications, and manual operational processes — had become a critical bottleneck to growth, agility, and competitive differentiation.

Over an 18-month engagement spanning four structured migration phases, the organization decommissioned 320 on-premises servers, containerized 47 applications, and re-platformed its primary SQL Server workload to Azure SQL Managed Instance. A fully automated CI/CD platform built on Azure DevOps replaced 6-to-8-week manual release cycles with multiple deployments per day. The result was a 40% reduction in total infrastructure cost, a jump in availability from 99.5% to 99.99%, and deployment lead times compressed from weeks to under two hours.

Key Outcomes at a Glance

The organization’s CTO articulated the strategic imperative: “Our on-premises model was preventing us from moving at the speed the business required. We needed elastic scale, global reach, and the ability to innovate without infrastructure constraints.”

The existing on-premises environment presented significant operational and strategic challenges across four dimensions

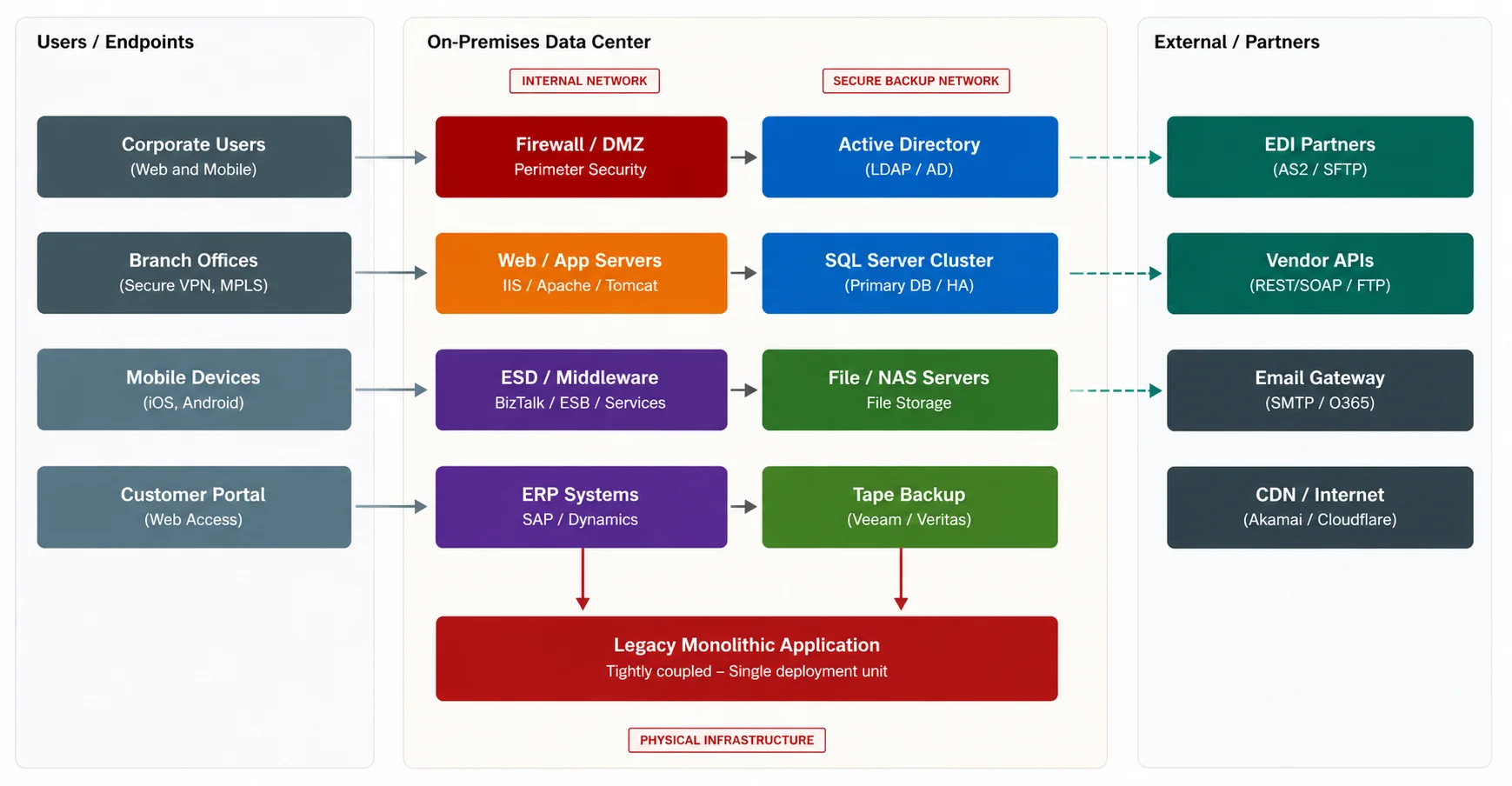

The diagram below illustrates the pre-migration architecture, characterized by a perimeter-based security model, tightly coupled application tiers, and no automated deployment capability.

The migration and modernization program was structured around four strategic pillars, each directly addressing the constraints identified in the current-state assessment.

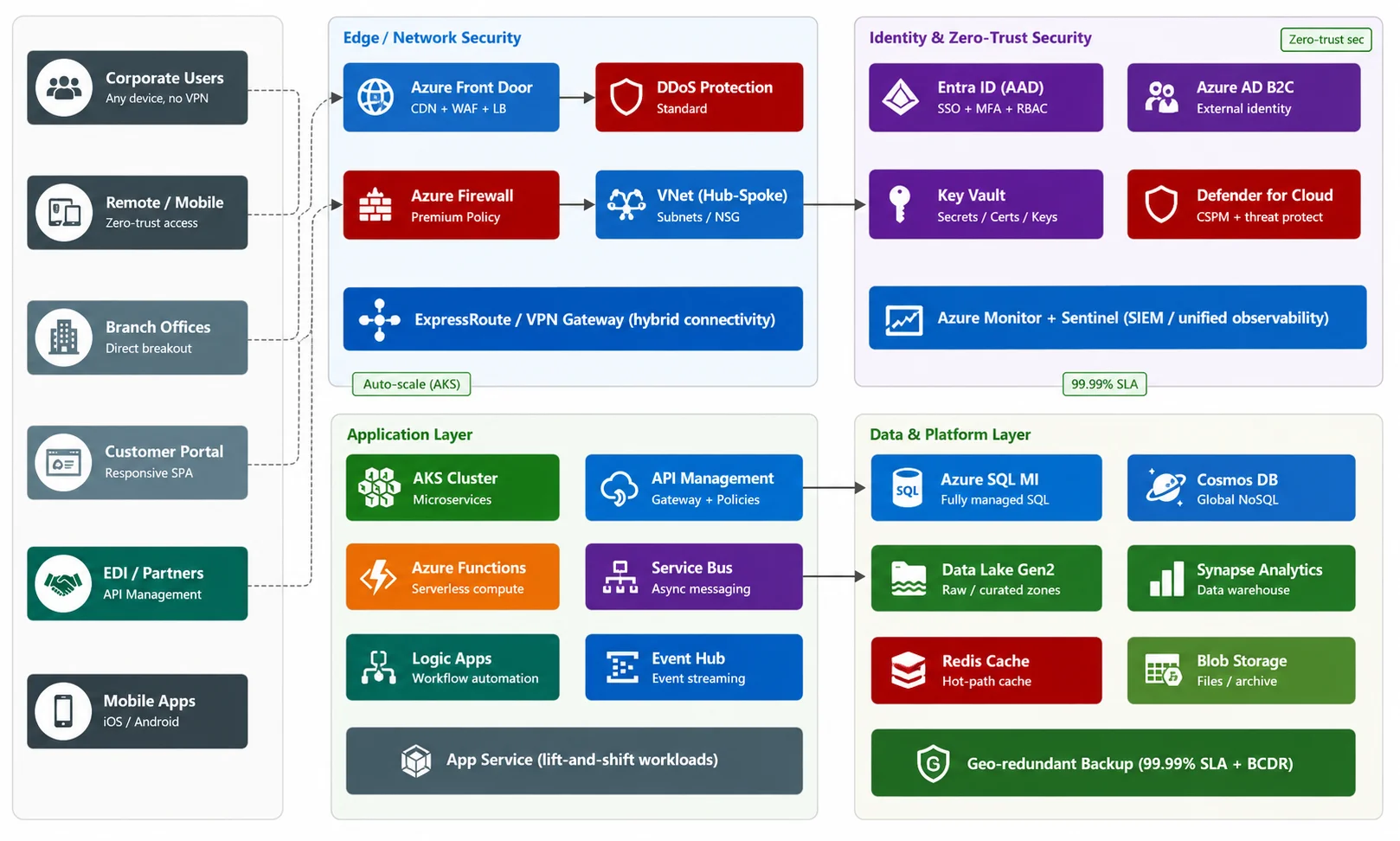

The post-migration Azure architecture adopts a hub-spoke network topology, zero-trust security perimeter, and cloud-native managed services for compute, data, and integration. All workloads are deployed across two Azure regions for active-passive high availability.

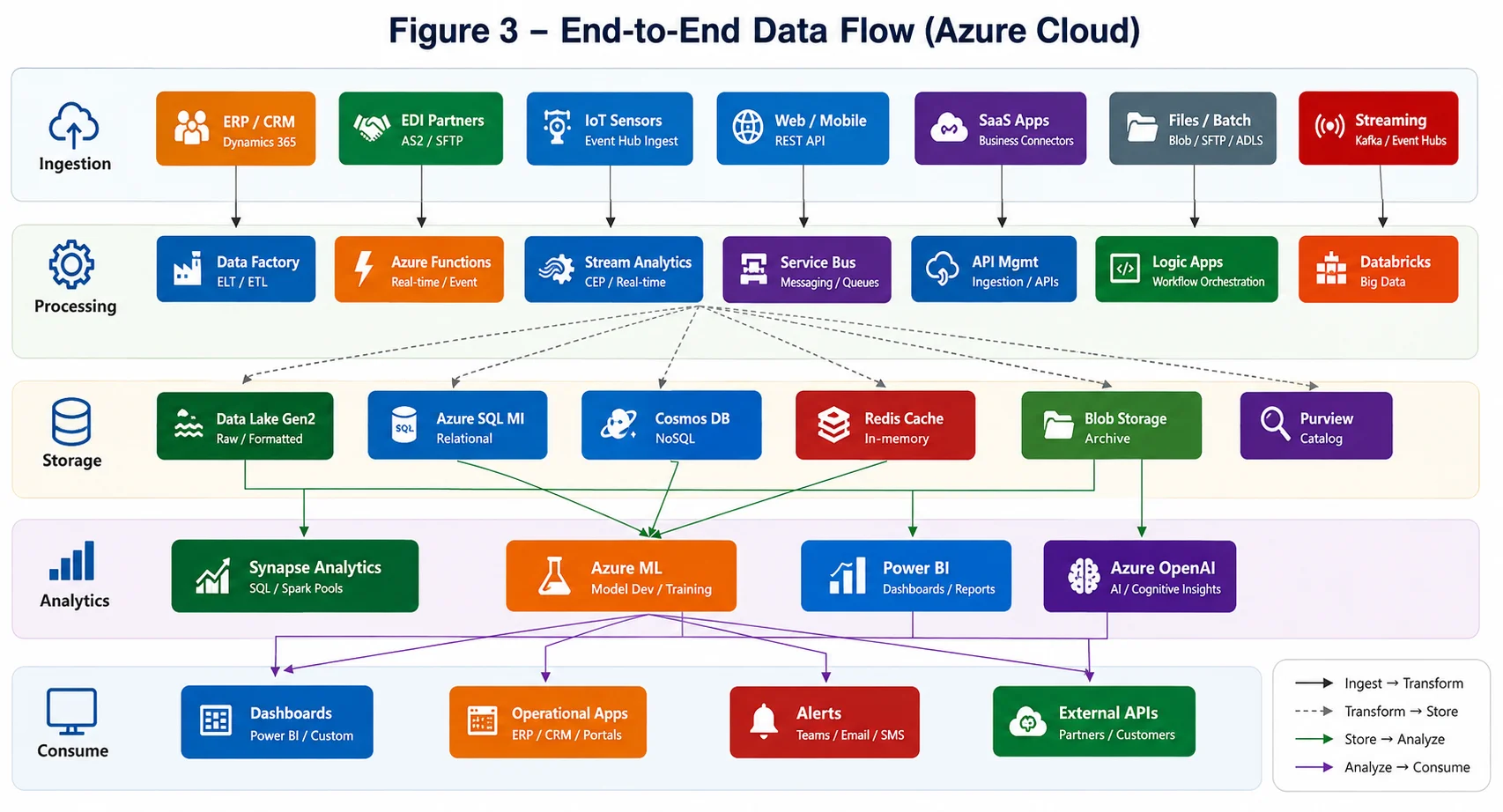

Data flows through five distinct layers — Ingestion, Processing, Storage, Analytics, and Consumption — each implemented as a managed Azure service tier. The architecture eliminates point-to-point integrations in favor of an event-driven, loosely-coupled data mesh pattern.

The data flow architecture supports three operational modes

• Real-time streaming — sub-second latency via Azure Event Hub and Stream Analytics for IoT and transactional event processing.
• Micro-batch processing — 5-minute SLA for EDI partner data and ERP change-data-capture feeds via Azure Data Factory.
• Batch / scheduled — overnight full-refresh pipelines for large-volume historical datasets stored in Data Lake Gen2.

The Azure DevOps CI/CD platform replaced the organization’s fragmented manual release process with a fully automated, auditable, and environment-gated deployment system. Every code commit flows through a multi-stage build pipeline before triggering an environment-promotion release pipeline that safely delivers changes to production with zero-downtime deployments.

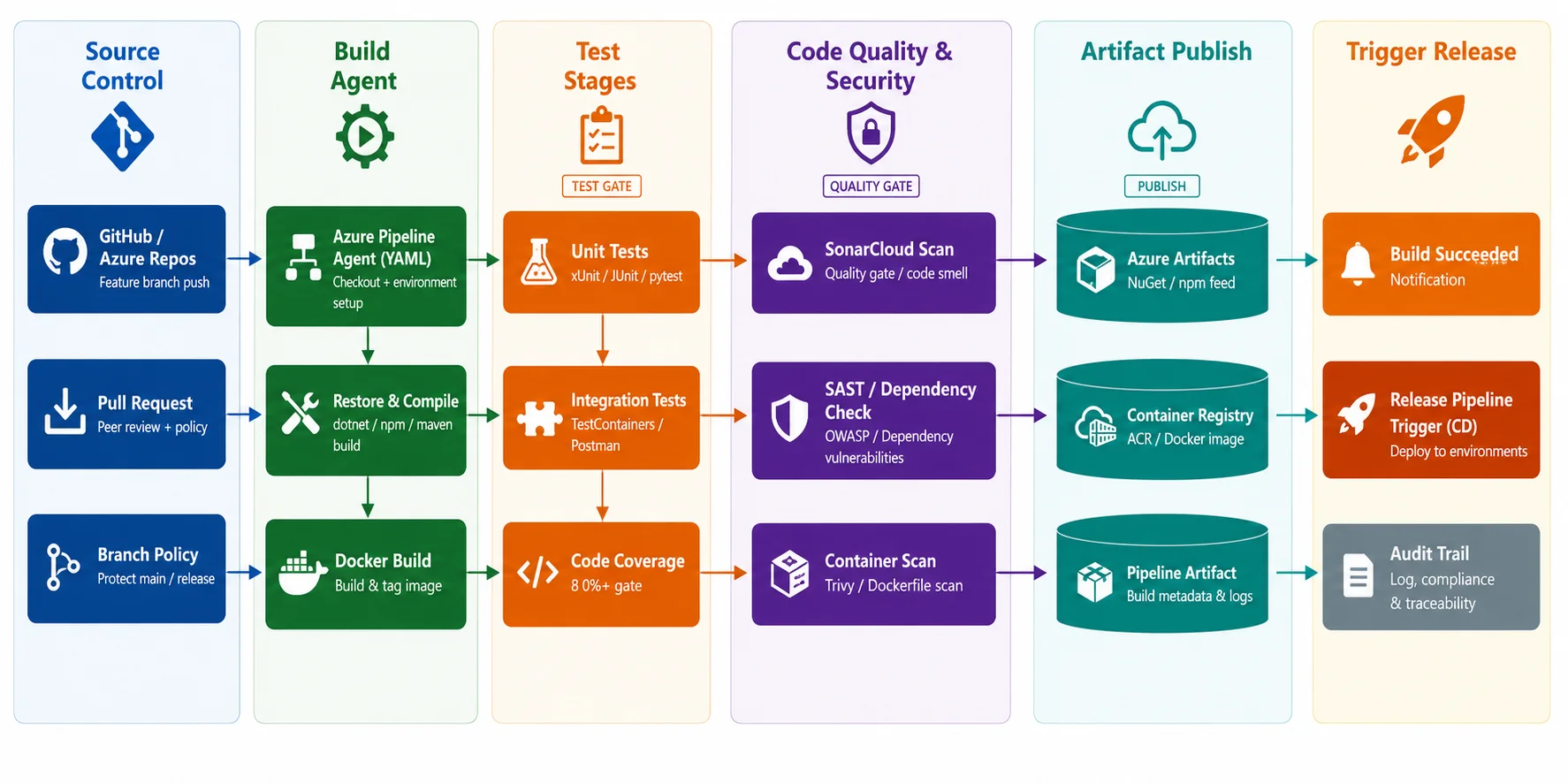

Every push to a feature branch or pull request to main triggers the CI build pipeline defined as YAML in the repository. The pipeline runs on Microsoft-hosted agents (Ubuntu 22.04) for standard workloads and self-hosted agents for workloads requiring access to private network resources. The pipeline enforces strict quality gates — a failed gate causes the build to fail, blocking the pull request merge and preventing a broken artifact from being published.

The table below describes each stage of the build pipeline, its trigger, the tasks it executes, the quality gate it must pass, and the Azure DevOps tooling used:

The release pipeline consumes the artifact produced by the build pipeline and promotes it through four environments — DEV, QA, Staging, and Production — with an optional DR/Canary ring for high-risk changes. Each environment stage includes Terraform-based infrastructure provisioning, Helm-based Kubernetes deployment, automated smoke tests, and an Azure Monitor health check before the promotion gate is evaluated. Environment-specific secrets are injected at runtime from Azure Key Vault via Azure Pipelines Variable Groups, ensuring no secrets are stored in pipeline YAML or code.

Each promotion gate combines automated health checks with human approval where warranted. The table below summarizes the deployment strategy, gate criteria, and rollback mechanism for each environment

The following core Azure DevOps components and integrations form the automation backbone

• Azure Repos (Git): Mono-repo per service with branch policies enforcing signed commits, PR reviews, and linked work items. GitFlow branching strategy: feature/* → develop → release/* → main.
• Azure Pipelines (YAML): Multi-stage pipeline-as-code stored in the repository root. Templates shared across services from a central pipeline template repository, ensuring consistency and reducing duplication.
• Azure Artifacts: Private NuGet, npm, and Maven feeds used by all build agents. Upstream caching prevents builds from reaching the public internet, improving security and reliability.
• Azure Boards: Work items linked to commits and pull requests. Automated state transitions move items from “In Development” to “Ready for QA” to “Done” as pipeline stages complete.
• Azure Test Plans: Exploratory and manual test cases linked to user stories. Test results from automated pipelines are published to Test Plans for traceability and release sign-off reports.
• GitHub Advanced Security (GHAS): Secret scanning, code scanning (CodeQL), and Dependabot alerts integrated into every pull request.
• Key Vault + Variable Groups: Environment-scoped variable groups backed by Azure Key Vault references. Secrets are never stored in pipeline YAML — they are resolved at runtime with agent access controlled by Managed Identity.
• Service Connections: Azure Resource Manager service connections using Workload Identity Federation (OIDC) — no stored service principal secrets, eliminating a common credential leakage vector.

The 18-month program was divided into four sequential phases, each with defined entry criteria, exit criteria, and go/no-go governance gates.

The following metrics were measured 90 days post-migration against the pre-migration baseline:

What Worked Well

• Pipeline-as-code from Day 1 — storing YAML pipelines in the repository alongside application code ensured pipelines evolved with the service and were version-controlled, reviewable, and auditable.
• Shared pipeline template library — a central ADO template repository enforced consistent quality gates, security scans, and artifact publishing across all 47 services without duplicating YAML.
• Landing zone first — 3 months invested in governance, networking, and security foundations prevented costly rework and security debt in later phases.
• DORA metrics as success criteria — measuring deployment frequency, lead time, change failure rate, and MTTR gave engineering leadership objective evidence of progress and motivated teams.
• Parallel-run database strategy — 4 weeks of live data validation in Azure SQL MI before cutover resulted in zero data integrity issues.

Challenges Encountered

• Legacy test suites not designed for CI — 23% of services had slow or flaky integration tests that initially made the CI pipeline unreliable. Investment in test refactoring was required before enforcing the coverage gate.
• Application dependency discovery was more complex than initially scoped — 23% of applications had undocumented dependencies that extended Phase 3 by 6 weeks.
• Developer upskilling on YAML pipelines and AKS required a structured enablement program — cloud champions in each product team were critical to accelerating adoption.

Recommendations

• Invest in pipeline template governance early — a central template library scales your CI/CD standards without creating a bottleneck team.
• Measure DORA metrics from Day 1 — they will reveal where your bottlenecks truly are (hint: it is rarely the build step).
• Treat pipeline security (OIDC, Key Vault integration, image signing) as a first-class requirement, not a post-launch hardening exercise.
• Run a DevOps maturity assessment alongside the cloud readiness assessment — the two must be co-designed to avoid migrating a broken delivery process to the cloud.

The successful migration of this enterprise’s entire IT estate to Microsoft Azure — paired with a fully automated Azure DevOps CI/CD platform — demonstrates that large-scale cloud modernization and delivery automation are inseparable. Infrastructure without deployment automation creates a faster environment for slow, risky releases; automation without the right cloud foundation creates pipelines that deploy to brittle infrastructure.

Together, the Azure cloud platform and Azure DevOps build and release pipelines have given this organization’s engineering teams the capability to ship value to customers continuously, confidently, and safely — transforming software delivery from a quarterly event into an everyday capability.
